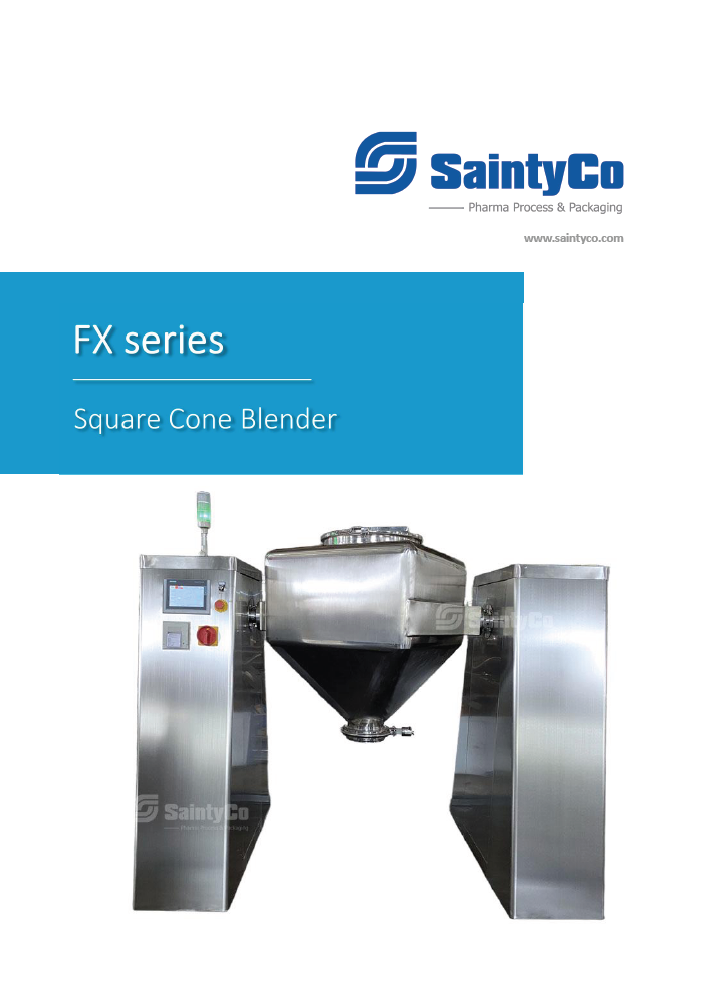

FX Square-Cone Mixing Machine

FX Square-Cone Mixing Machine

Mixing Machine Usage

FX series Mixer is used in pharmaceutical industry mainly for mixing of granules and powder, granules and granules, powder and powder. It gains the merits of large batch size, proportional load supporting, steady operation, etc. Meanwhile, it can be widely used in such areas as raw medicine material industry, chemical industry, foodstuff industry, etc.

Automatic Mixing Machine Principle:

FX series Mixer consists of supporting shelf, driving system, controlling system, etc. To start to work, charge the materials into the container and close the cover. Assign the parameters as mixing time, mixing speed according to requirements. Switch on the button to start the driving motor, the machine starts to work. Reaching to the assigned parameters, the braking system works, the machine stops accordingly with the container orientated vertically. The mixing craft is then finished and can separates, the braking system works, the machine stops accordingly with the container orientated vertically. The mixing craft is then finished and can separate materials from the container. The structure trait of HGD series Mixer is that the container and the mixing axis make of an angle, the movement of the materials inside the container contains not only overturn, but tangent movement along the wall of container. This gains it a perfect mixing efficiency.

Mixing Machine Features:

FX series Mixer is the brand-new successfully type by our company widely researching, absorbing and digesting foreign updated models. It has compact structure, steady performance and is convenient to operate. There is no dead angle, no concave-convex face and no screw on surface. All angles are cambered. The surface outside and inside is polished to high quality. Roughness degree inside is Ra≤0.2μm,and outside is Ra≤0.4μm.Applying sealing appliance made of silicon latex on the cover of the container to gain a good airproof quality, and butterfly valve against wrong way operation. It’s easy to wash. Charging coefficient arranges from 50% to 80% with adjustable mixing time and speed, the mixing coefficiency reaches to 99%. It’s in conformity with the GMP requirements.

FX Square-Cone Mixing Machine

Technical DataFX-400FX-600FX -800
L195025002650
W150016001830
W1120012001200
F8009001000
H225023502580
H1800800800
H2172018001900
H3194020402160
DN200200200
Φ400500500
Blending speed(rpm)3~203~203~15
Max bin volume(L)400600800
Loading volume(L)320480640
Loading Weight(Kg)200300400
Power(Kw)2.233
Weight(Kg)600700800
