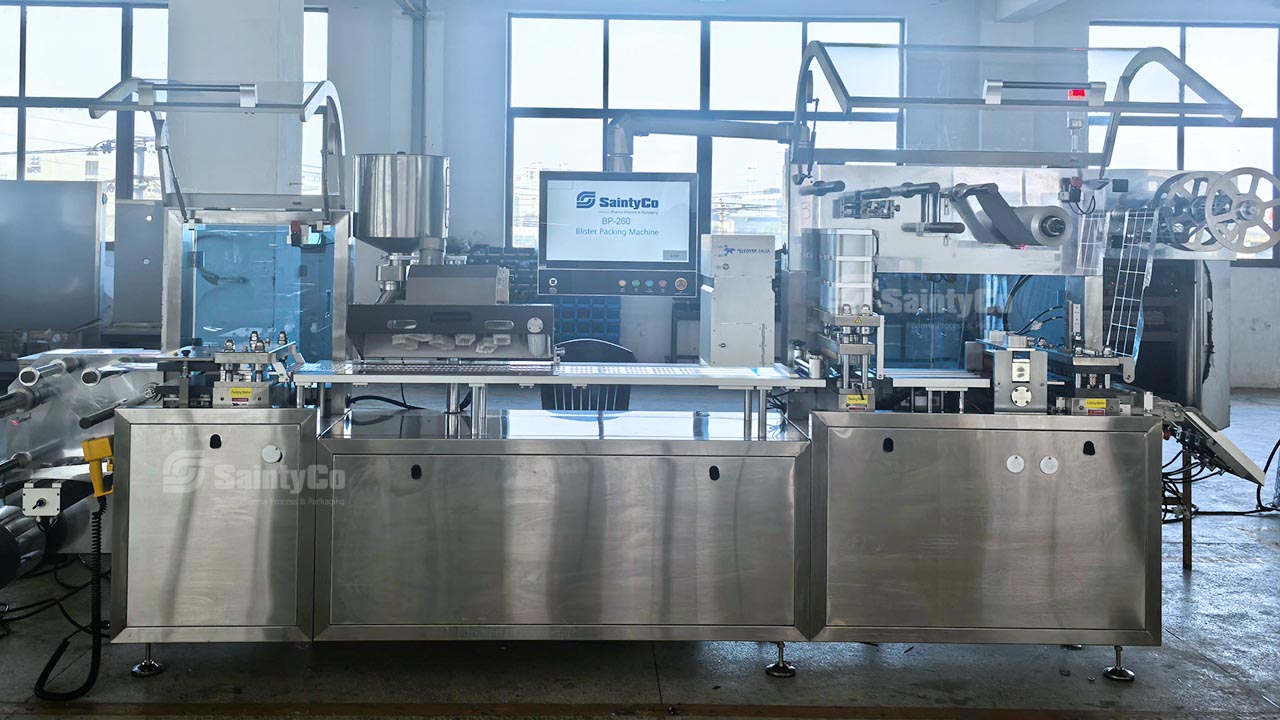

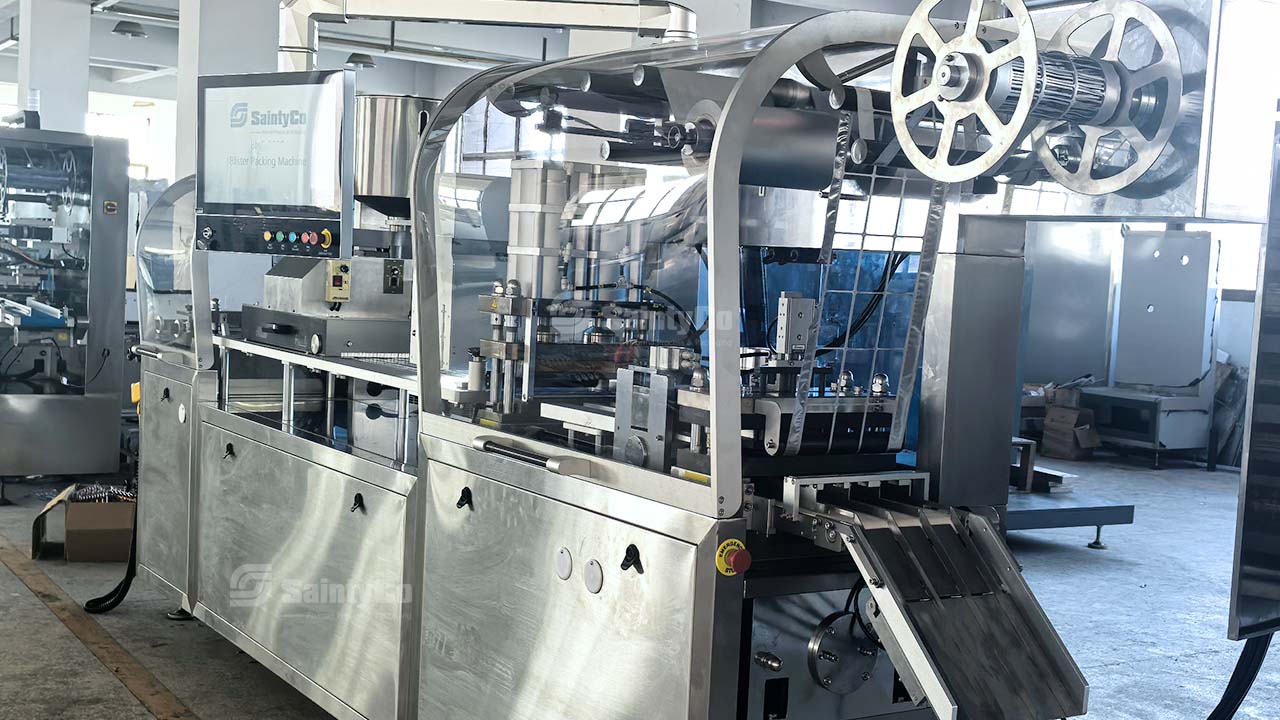

BP-260 Blister Packing Machine
It is specially designed for medium size productions that require a high flexibility.
Features:
- Manufactured according to cGMP standards.
- Servomotors ensure accurate and smooth web conveying and punching.
- Photoelectric indexing control.
- Easy and quick changeover without tools
- AISI 304 Stainless Steel cover.

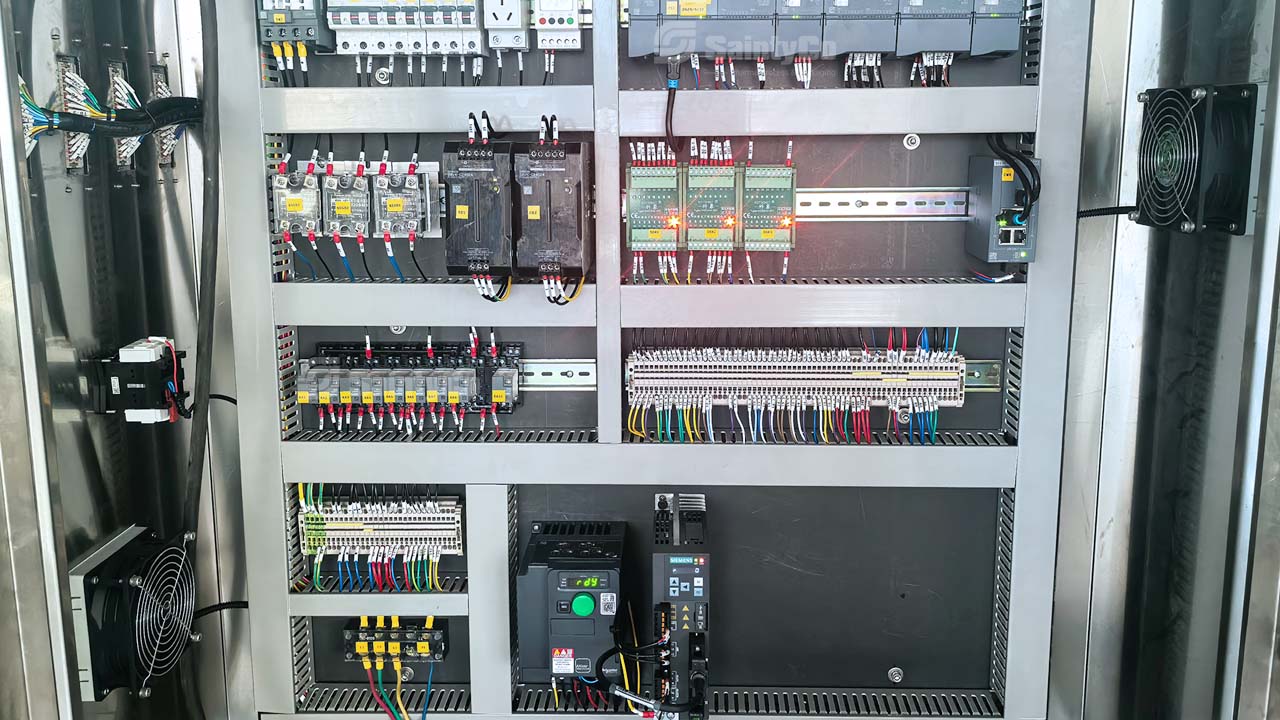

- PLC controlled with Touch Screen Control Panel (HMI) for easy operation.
- Electronically monitored individual temperature control for upper and
- lower heating plates, high reliability to meet forming material characteristics.

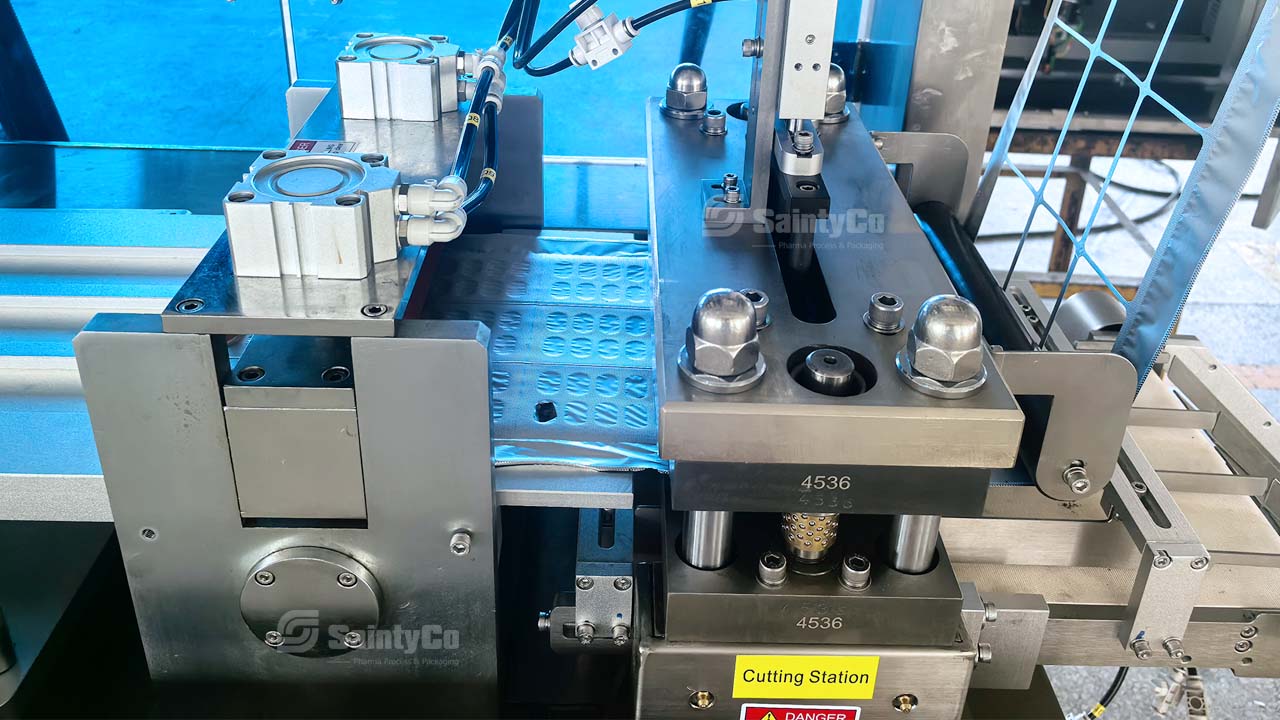

- Code embossing and slitting or perforation line.
- Pneumatic clamp web indexing system.
- Sturdy construction for prolonged durability.

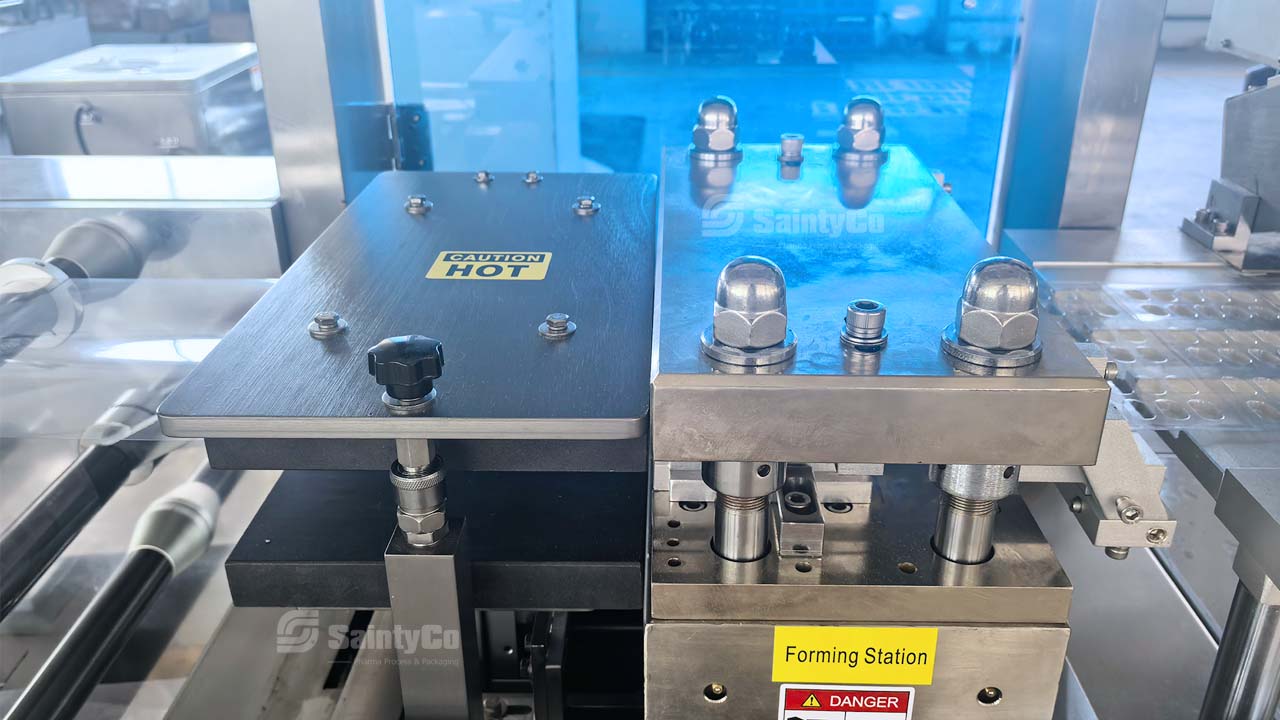

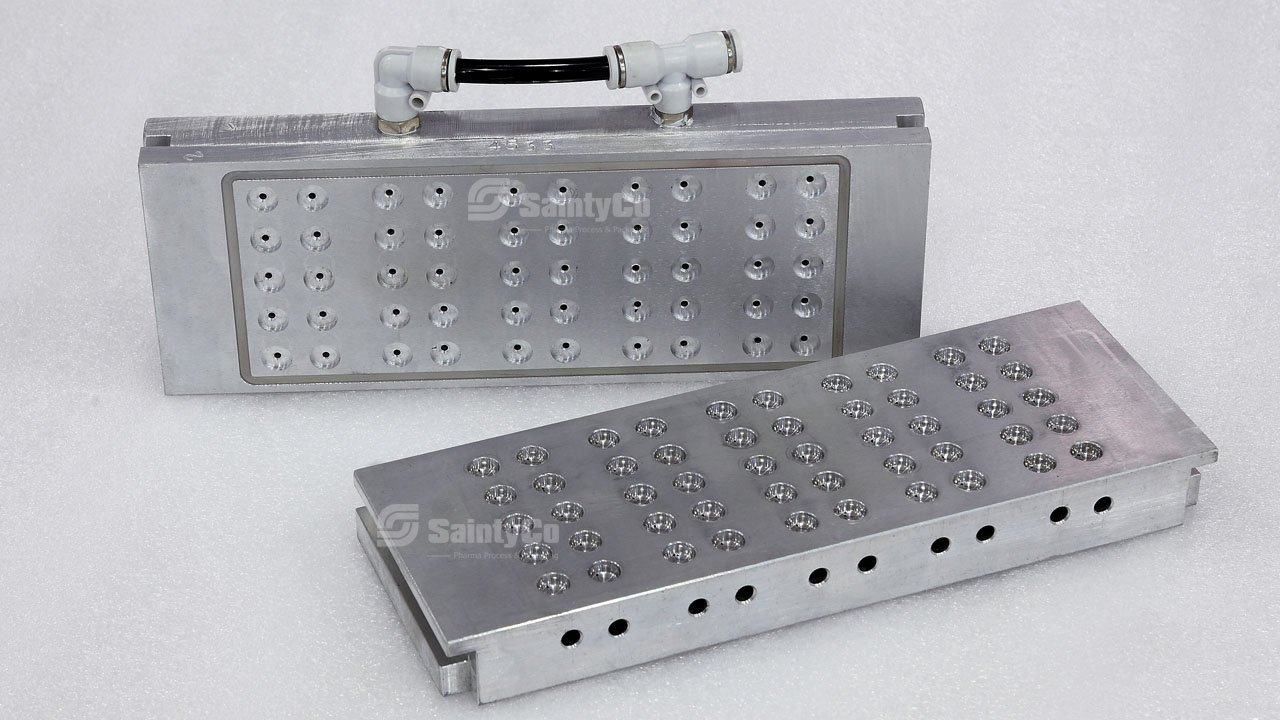

Flat platen type forming and sealing, constant sealing
pressureand temperature ensure a perfect blister.
Heat forming and cold forming:
PVC, PVC+PVDC, PVC/aclar, PP, ALU-ALU.etc.

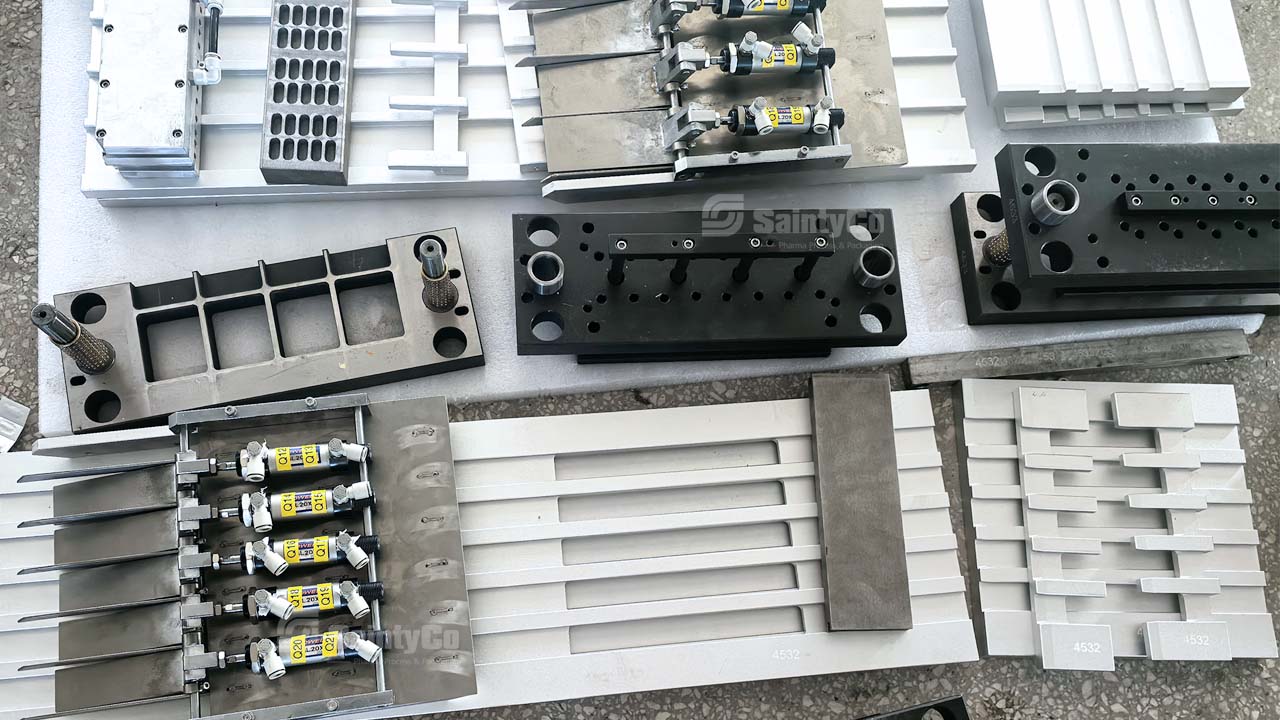

Easy changeover without tools
Up to 200 blisters/min
BP-260 Blister Packing Machine
| Technical Data | BP-260 |
| Output | Max.200 blisters/min |
| Speed | Alu/PVC, 20-50 cycles/min Alu/Alu,15-30cycles/min |
| Die-cutting range max. | 250×120mm |
| Forming depth max. | 15mm(or 23mm upon request) |
| Indexing max. | 130mm |
| Forming foil | PVC, PVC+PVDC, PVC/aclar, ALU-ALU.etc. |
| Max.wide | 260mm |
| Max.diameter | 350mm |
| Max.thickness | 300 microns |

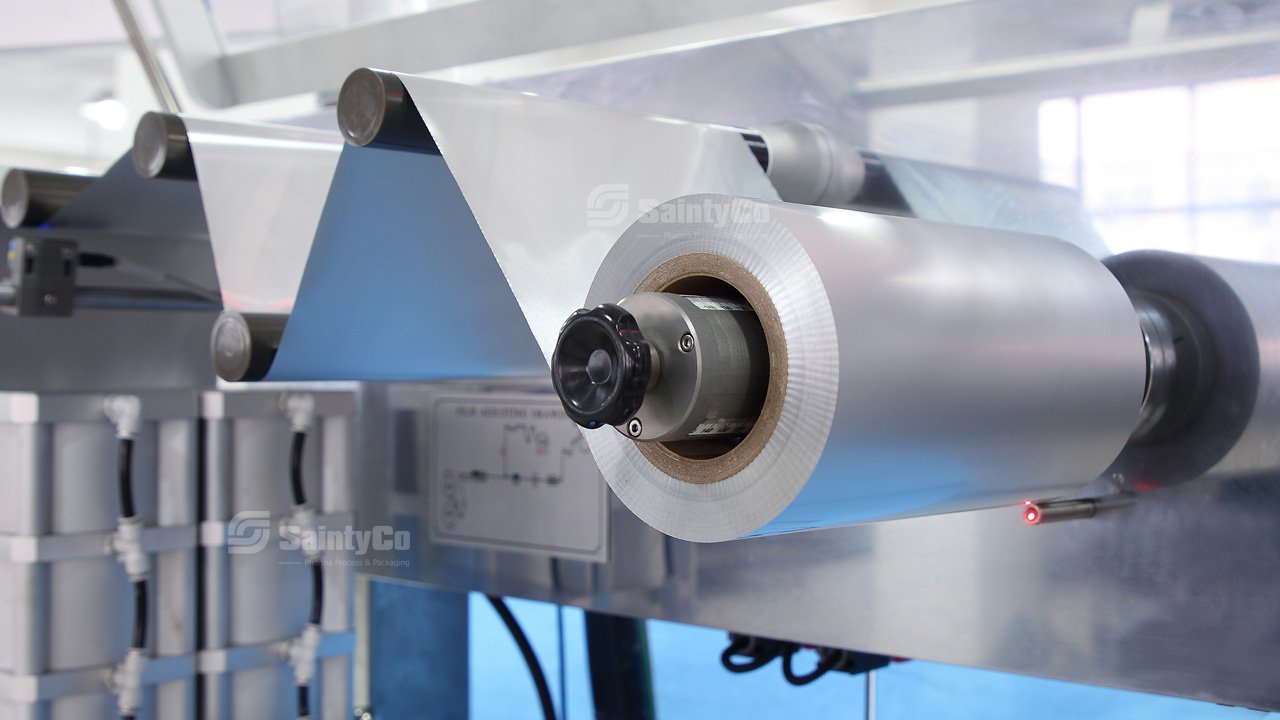

| Lidding foil | Al, paper, etc. |
| Power supply | 380V/220V 50/60Hz |
| Power consumption | 5.7Kw |
| Water consumption | 50 Its/hour @ 15/18℃ |
| Air consumption | 0.3m3/min 0.5-0.7MPa |
| Dimensions | L=4200mm A=650mm H=1700mm |
| Net weight | 1500Kg |
