PrimaPress Rotary Tablet Press
- Application
- Specification
- Video

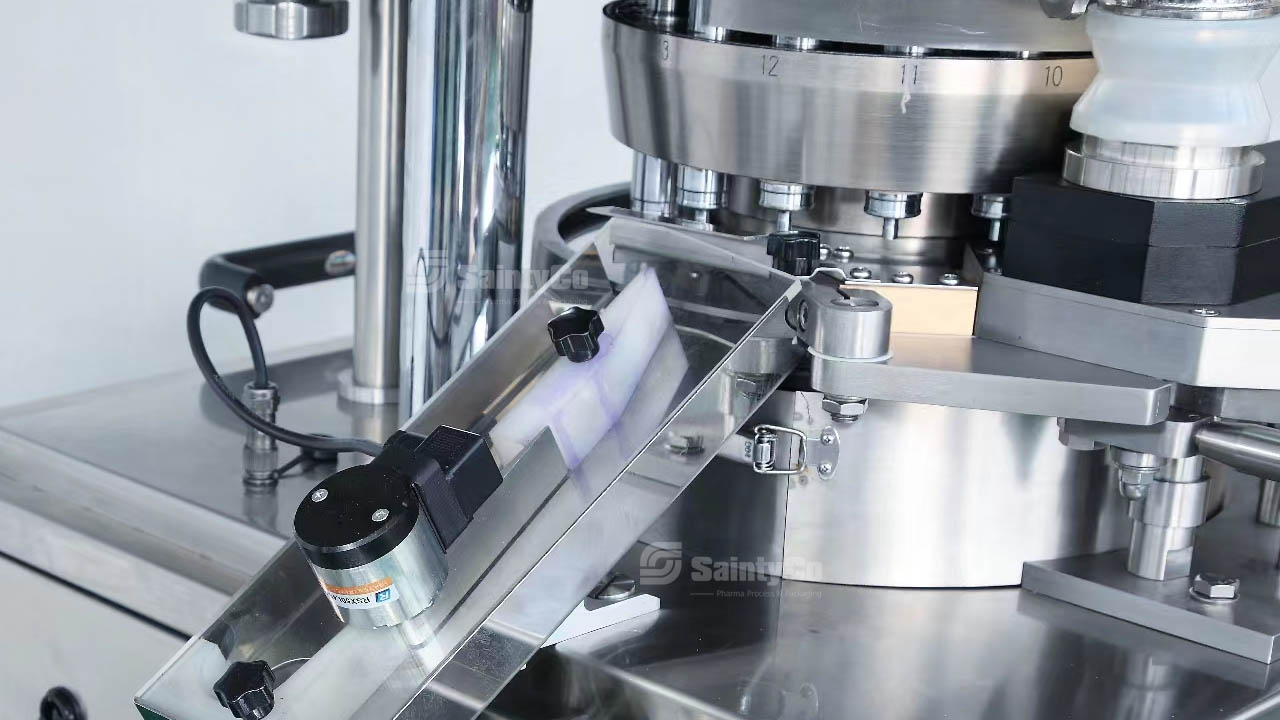

PrimaPress Rotary Tablet Press Machine
Tablet Pressing Machine,Tablet compression machine,Tablet Presses,Tablet Pressing machine
Features:
- The contact with product adopts stainless steel.
- The hole of the punch&die is with special anti-leakage and anti-dust device.
- Convience for disassemble structure, make sure the maintenance.
- Adopt high designation, isolated window design.
- Adopt reliable safe sealing and dustproof design.
PrimaTab Rotary Tablet Press Machine
| Technical Data | PrimaPress | |||||
| ST15 | ST17 | ST20 | ST25 | |||
| Machine configurations | Mono-layer | |||||
| Punch&die type(EU) | D | B | BB | BBS | ||
| Number of press station | 15 | 17 | 20 | 25 | ||
| Max tablet diameter(mm) | 25 | 16 | 13 | 11 | ||
| Max abnormal prolate axis size | 25 | 18 | 16 | 13 | ||
| Max output(Tablet/h) | 70000 | 80000 | 95000 | 118000 | ||
| Max filling depth(mm) | 20 | 16 | 16 | 16 | ||
| Max main pressure(KN) | 100 | 80 | 80 | 80 | ||
| Max pre pressure(KN) | 12 | 12 | 12 | 12 | ||
| Idle load noise dB(A) | <75 | |||||
| Power | 380V 50HZ 5.5KW | |||||
| Dimension (mm) | 660x690x1620 | |||||
| Weight (KG) | 675 | |||||
PrimaPress Rotary Tablet Press
