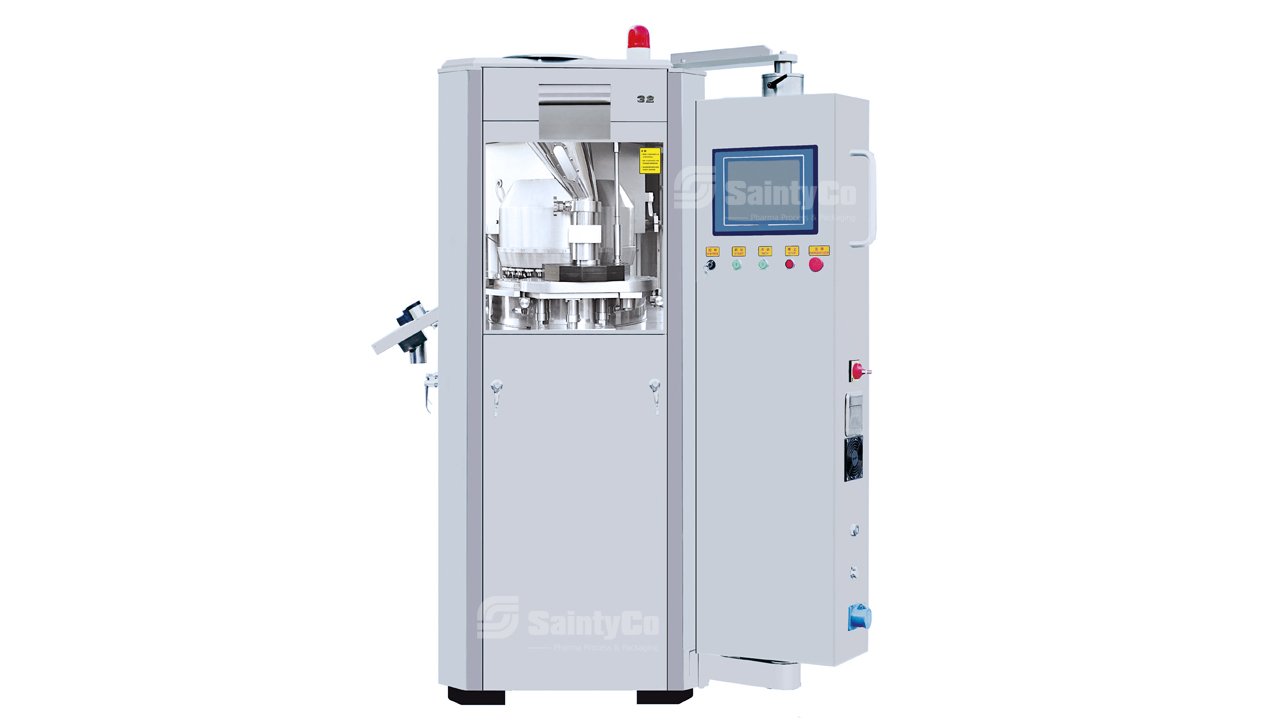

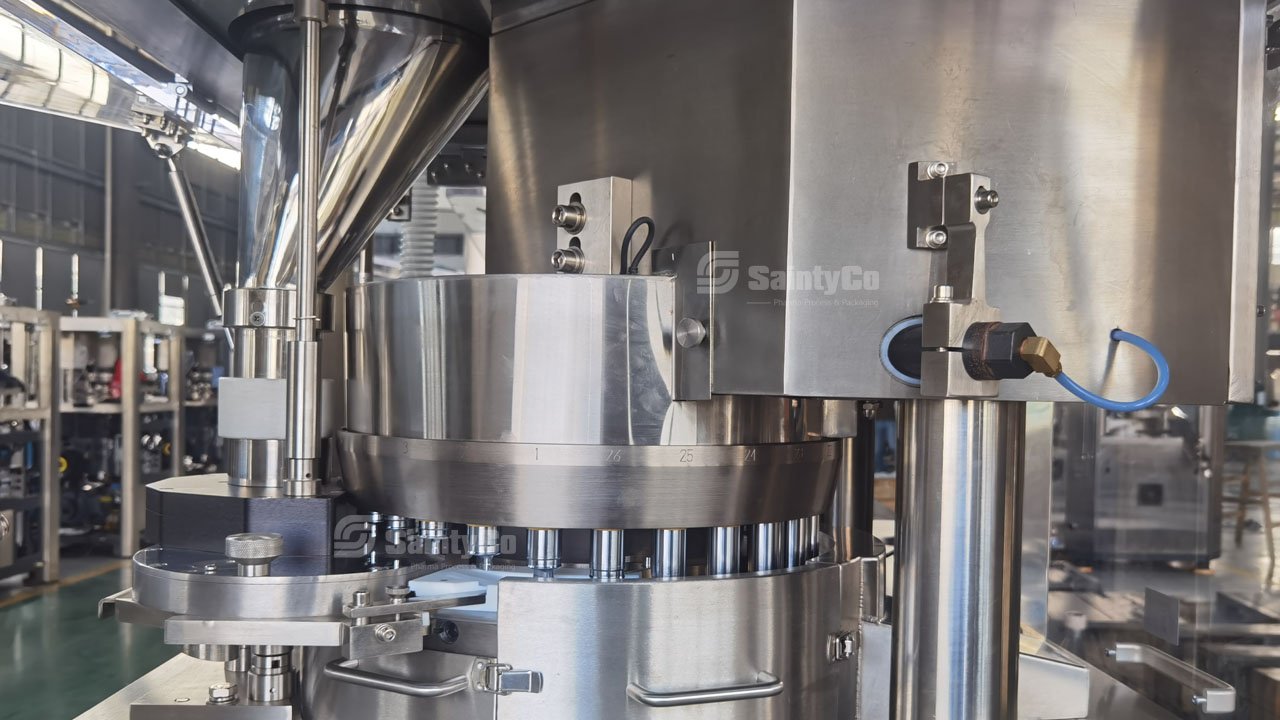

AdvantaPress Rotary Tablet Machine
Tablet compression machine, Tablet press machine, Tablet Pressing machine
Tablet press machine Double forming, narrow intervene, big pressing wheel and frame construction design make the machine owning the ability of undeformation under the pressure, long time pressed tablet and stable working operation. Which guarantees tablet weight accuracy and tablet hardness in pressing large tablet, also the machine’s operation is very stable and with low noise.
Tablet pressing Performance Advantage

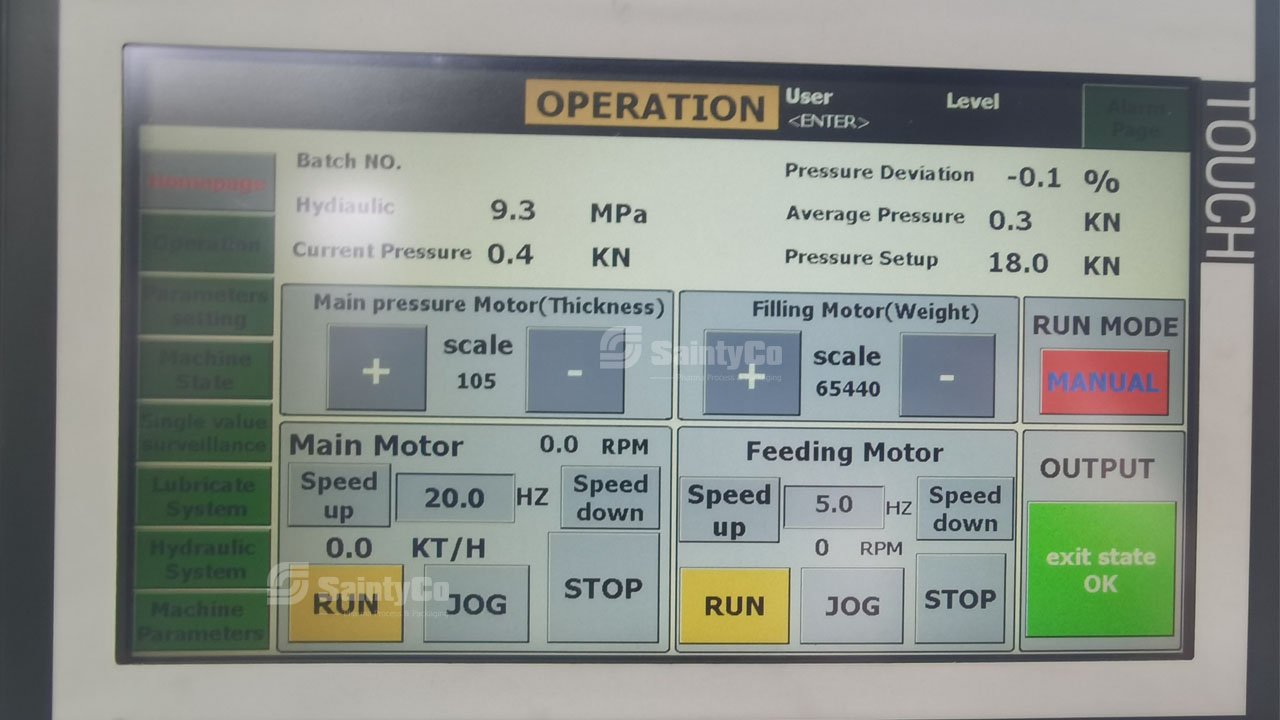

Tablet pressing Machine Adopt Japan OMRONCJ1M PLC and Taiwan EASYVIEW7.7 color touch screen, checking punch& die. Pressure through importd TEDEA-HUNTLELGH pressure sensor, to achieve on-line checking and analyse and jndgement, Automoticlly adjust pawderfilling depth , to achieve automatical control during tablet production period meantime moroitoring punches&die situation and powder supply as safeguard which greatly reduce production cost, increase tablet qualitified rate high efficient.
AdvantaPress Rotary Tablet Machine
| Technical Data | AdvantaPress | |||||
| ST26 | ST32 | ST40 | ST45 | |||
| Machine Configurations | Mono-layer | |||||

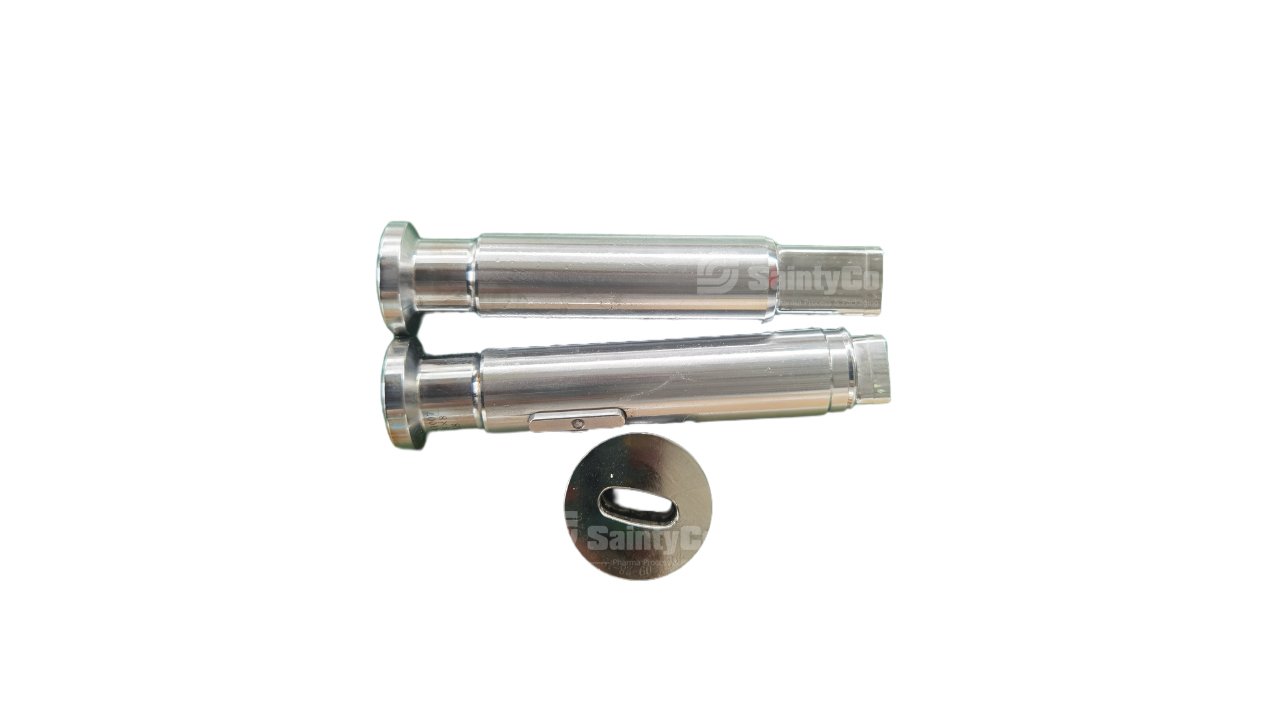

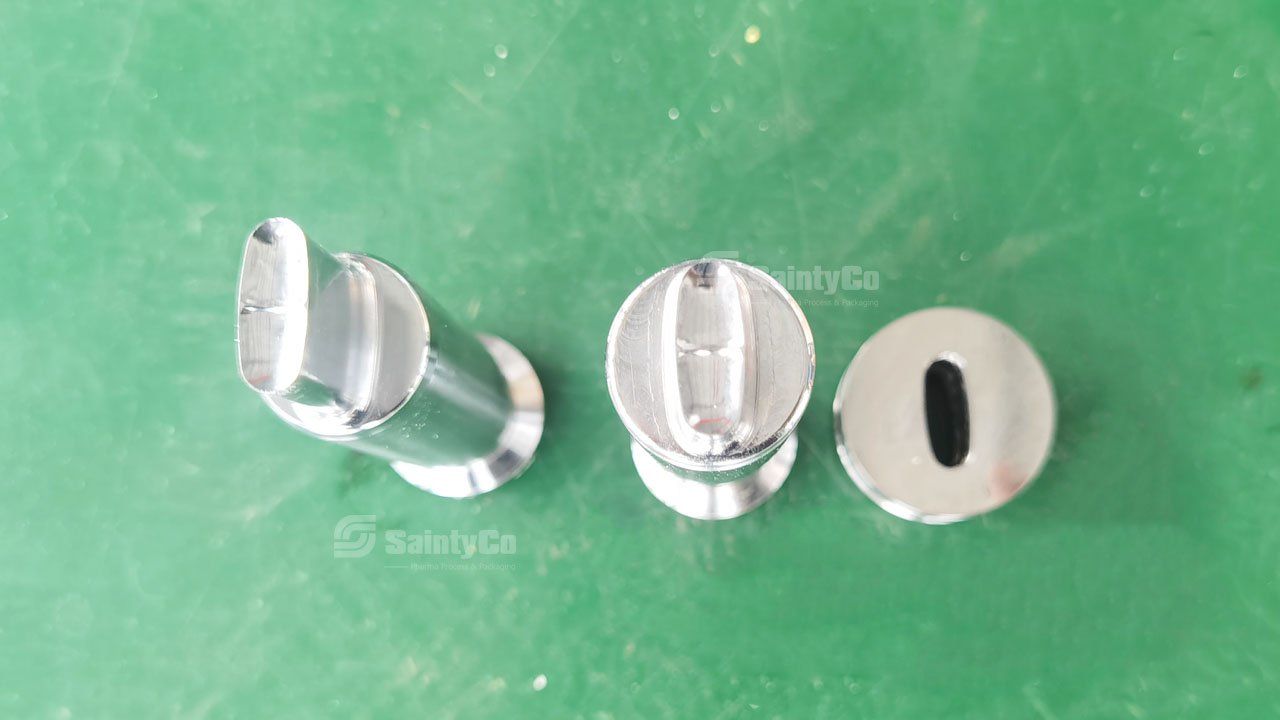

| Punch&die type(EU) | D | B | BB | BBS | ||
| Number of press station | 26 | 32 | 40 | 45 | ||
| Max tablet diameter(mm) | 25 | 16 | 13 | 11 | ||
| Max abnormal prolate axis size | 25 | 18 | 16 | 13 | ||
| Max output(Tablet/h) | 170000 | 210000 | 260000 | 280000 | ||
| Max filling depth(mm) | 20 | 18 | 18 | 18 | ||
| Max main pressure(KN) | 100 | 80 | 80 | 80 | ||
| Max pre pressure(KN) | 20 | 20 | 20 | 20 | ||
| Idle load noise dB(A) | <75 | |||||
| Power | 380V 50HZ 9.5KW | |||||
| Dimension (mm) | 780x860x1930 | |||||
| Weight (KG) | 1650 | |||||
