AdvantaPress Plus Double-Slide Tablet Press Machine
- Application
- Specification
AdvantaPress Plus Double-Slide Tablet Press Machine

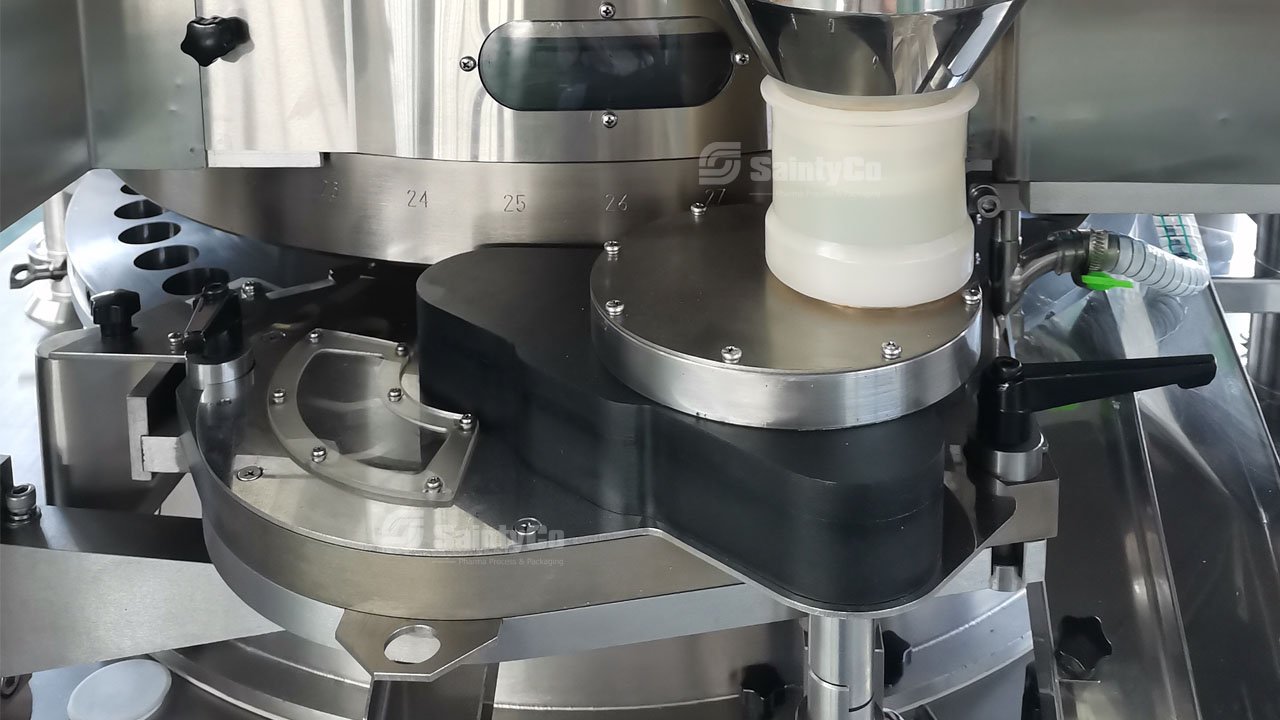

Adopt precise screw rod continuous slant supporting framework, precisely control feeding cam, which can control 7-11 punches&die, weight difference between±2%.
AdvantaPress Plus Double-Slide Tablet Press Machine Performance Advantage

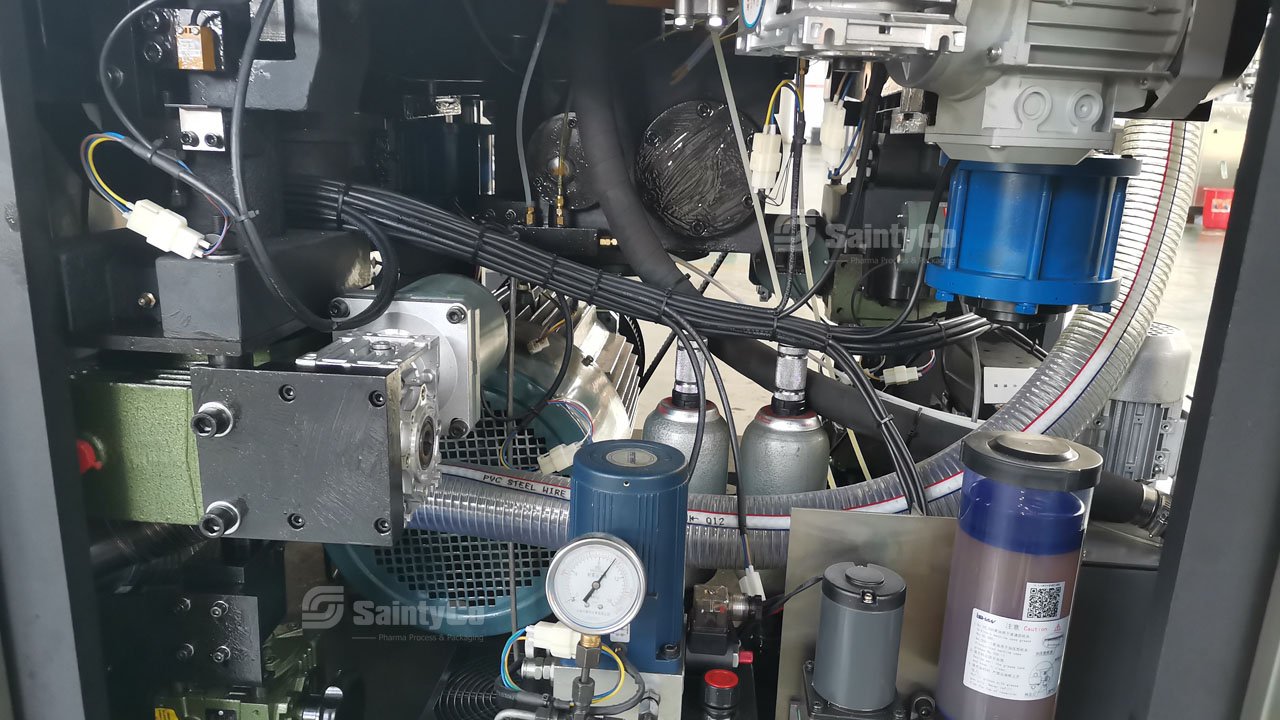

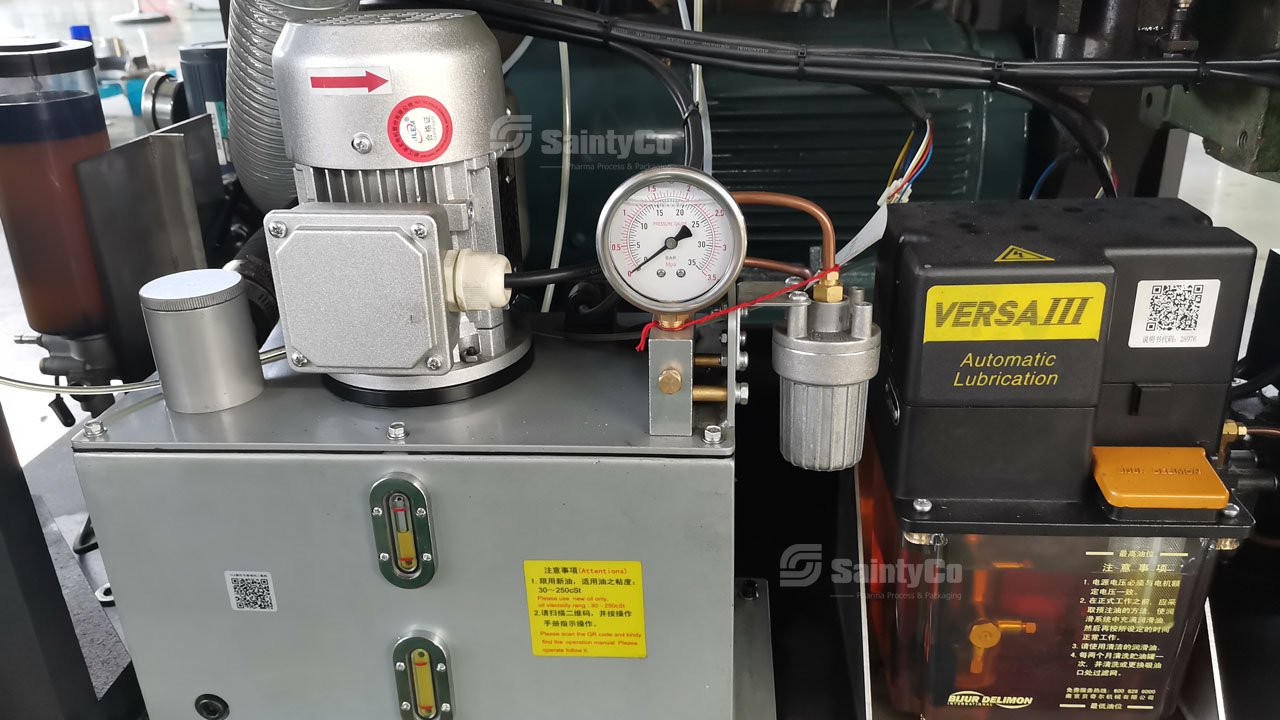

- Thin oil lubrication system: thin oil filtering, oil keep tidy all the time, effectively control temperature, which mainly function on main axis, pressure wheel, inner ruler ring etc, other machines from other companies use dry oil lubrication function, which is very backward.

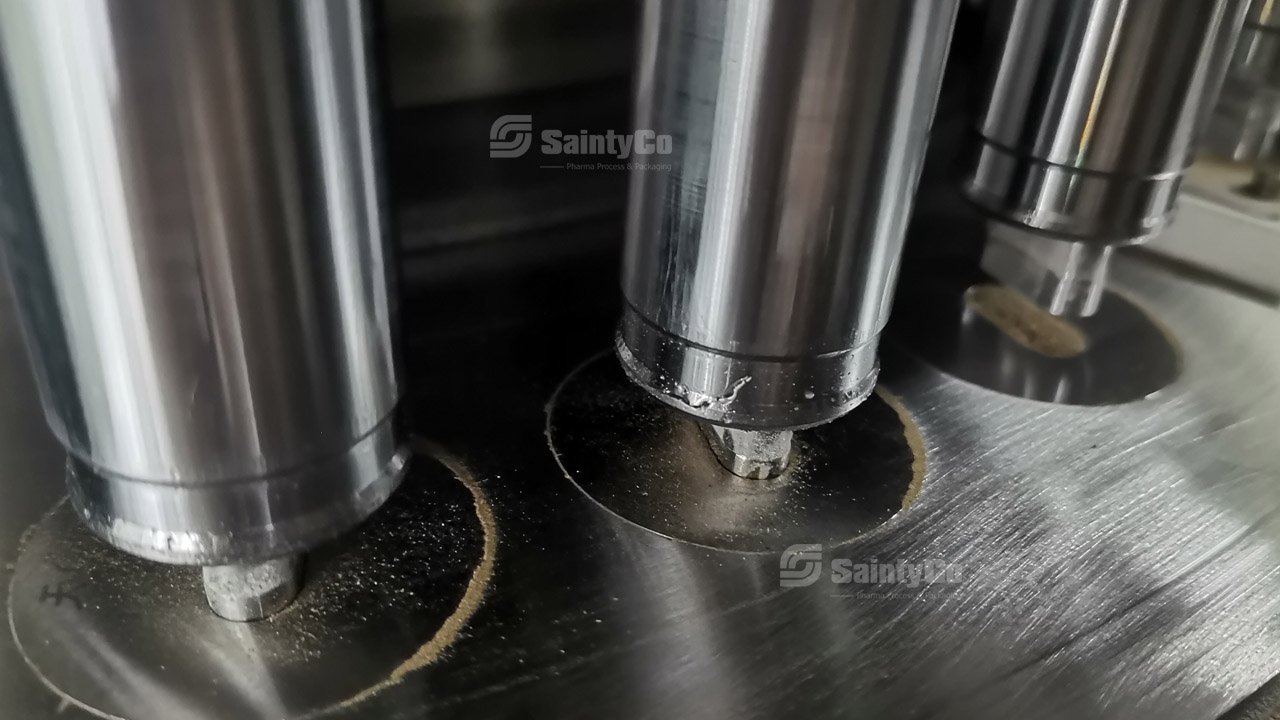

- Thin oil lubrication is used for upper and lower punches&die lubrication.
- The grease lubrication system is used for hat lubrication for upper and lower punches&die, at the same time, having the decrease vibration, and noise function, and lubricated some bearing, leading screw, moveable parts can be lubricated.
- Upper and lower press wheel are lubricated by the grease lubricating system.
| Technical Specifications | AdvantaPress Plus 45 | AdvantaPress Plus 55 | AdvantaPress Plus 69 | AdvantaPress Plus 75 |
| Punch&die type(EU) | D | B | BB | BB |
| Number of press station | 45 | 55 | 69 | 75 |
| Max tablet diameter(mm) | 25 | 16 | 13 | 13 |
| Max abnormal prolate axis size | 25 | 18 | 16 | 16 |
| Max output(Tablet/h) | 390000 | 470000 | 580000 | 630000 |
| Max filling depth(mm) | 20 | 18 | 18 | 18 |
| Max main pressure(KN) | 100 | 100 | 100 | 100 |
| Max pre pressure(KN) | 20 | 20 | 20 | 20 |
| Idle load noise dB(A) | <75 | |||
| Power | 380V 50HZ 10.5-13KW | |||
| Dimension (mm) | 1260*1260*1950 | |||
| Weight (KG) | 3750 | |||
