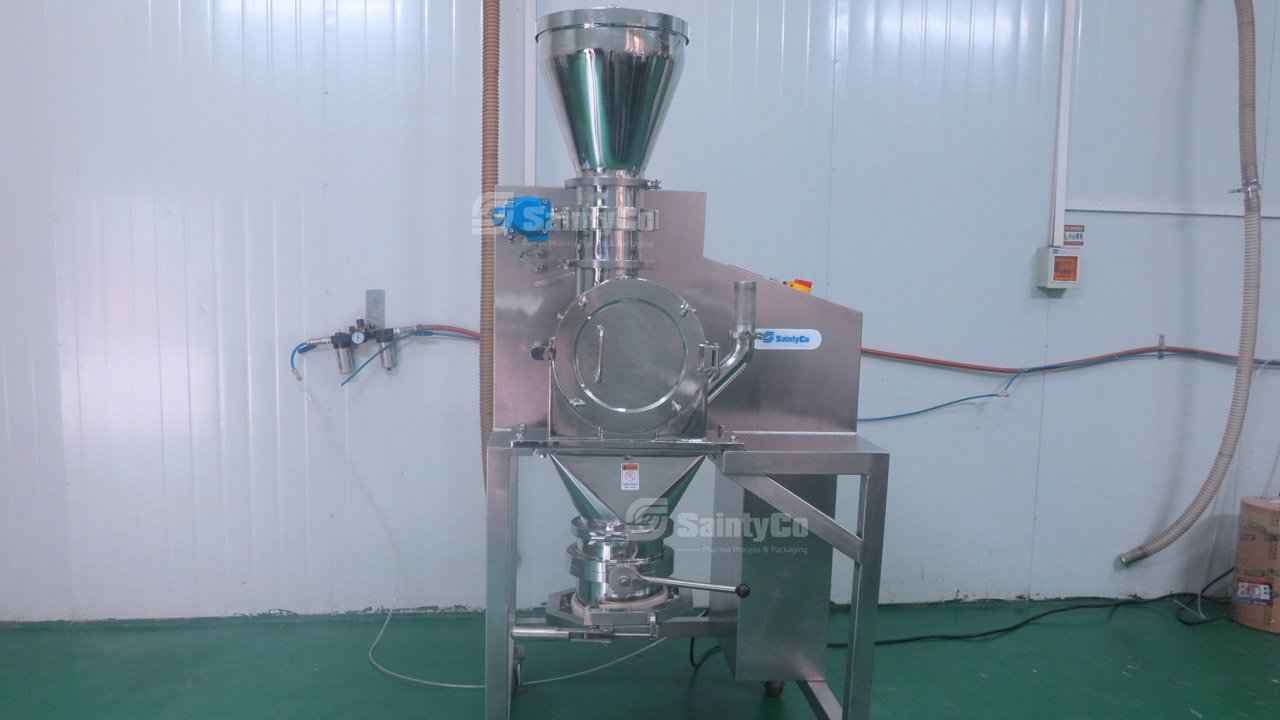

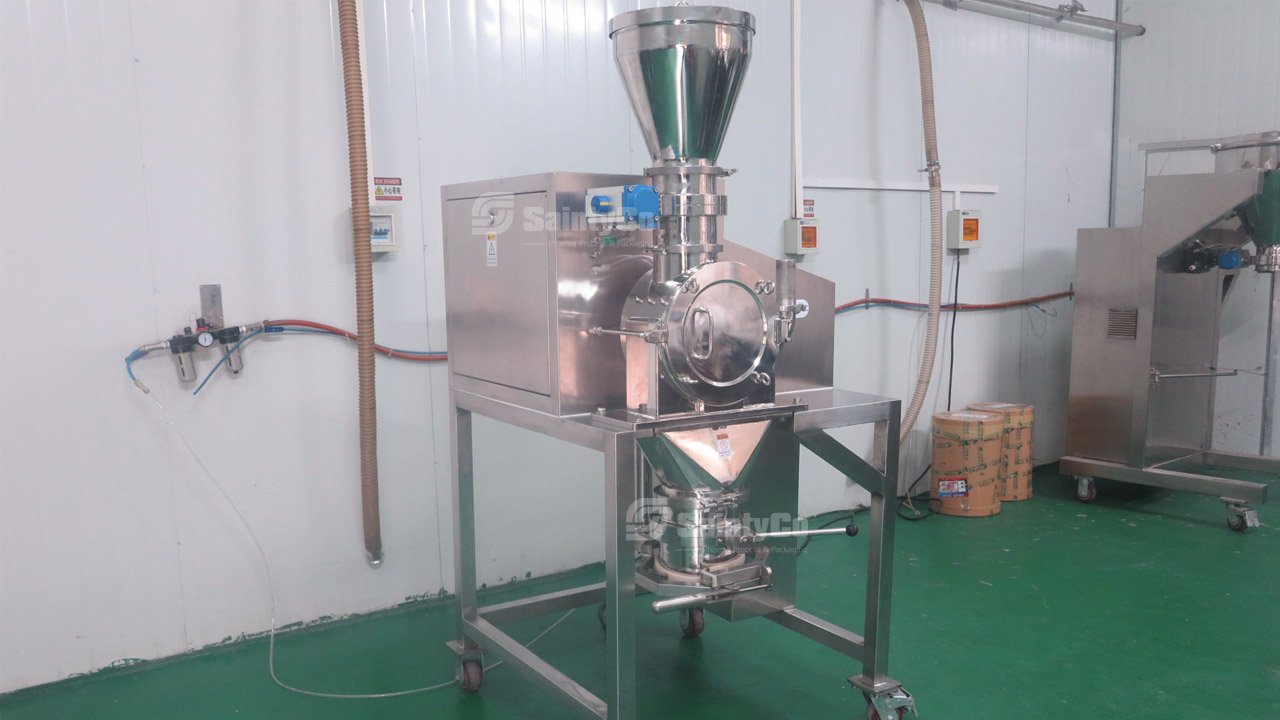

CFJ Hammer Mill
Rotary valve conveys materials well-distributed into pulverizing bin and materials are instantly crushed into due granularity under pulverizing effect (cutting and collision) from high-speed rotary crushing knife.
- Application
- Work Principle
- Specification
CFJ Hammer Mill
Features:
- Zero pollution for materials;
- Materials would not adhere to machine shell, easy-cleaning;
- Flexible module design;
- Self-protection for overheating and overload;
- Speed reaches 2500-6000RPM;
- Fast dismantle and renewal of rotor and screen, reliable safety.

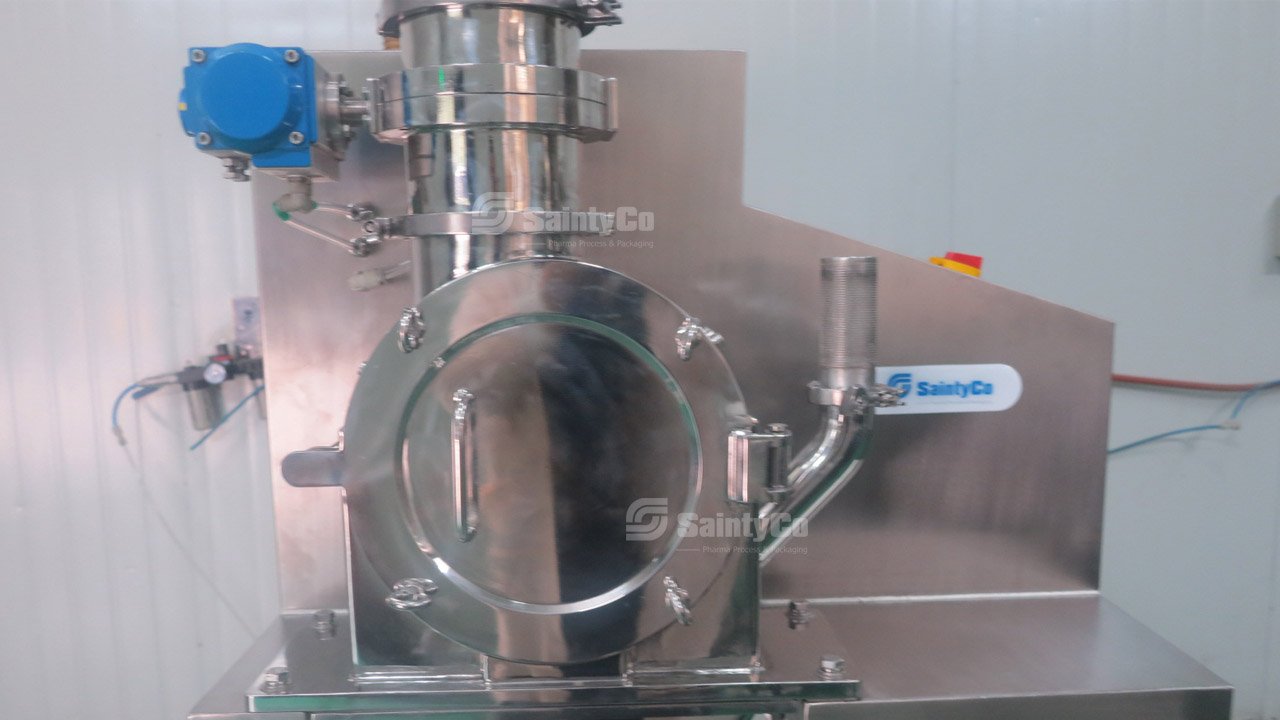

Mesh crushing and screening room:
Rotor and screen can be disassembled instantly from front cover. Design advantages are as follows: controlled filtering, stabilized processing capacity, convenient dismantle and cleaning, high security.
CFJ Hammer Mill
Work Principle:

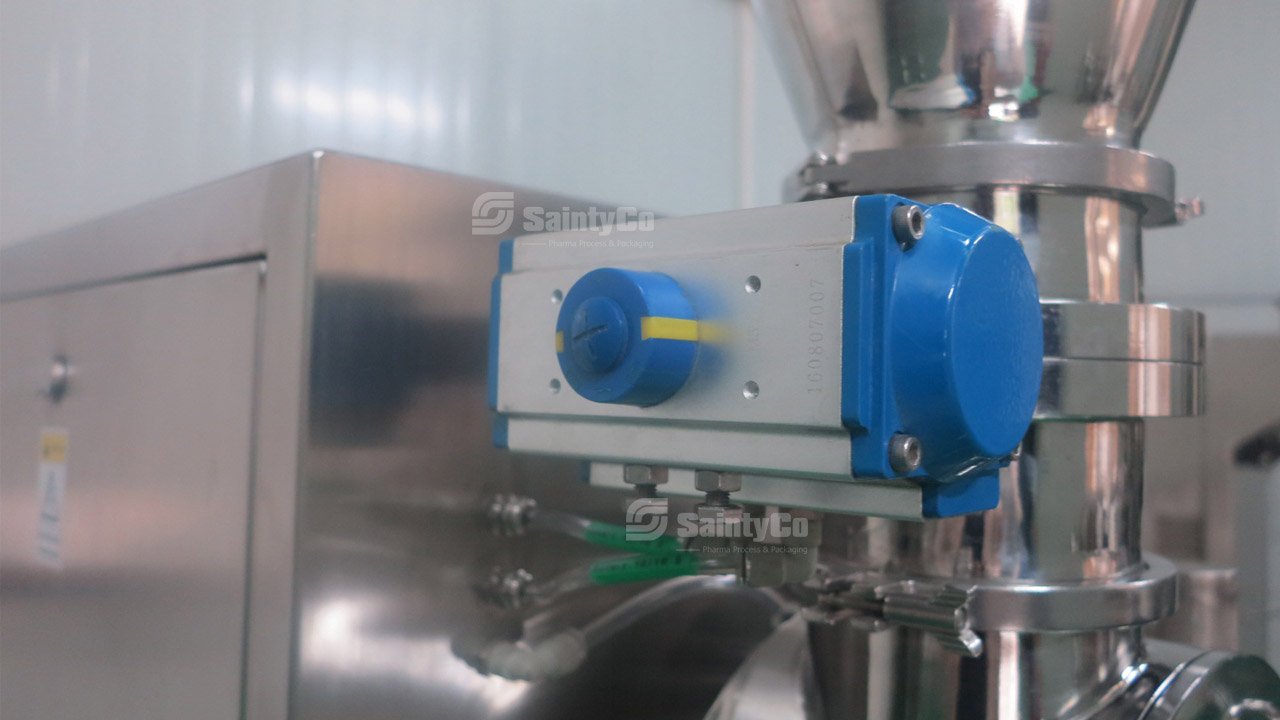

This equipment can be connected to a vacuum feeding machine of continuous feeding and use of pneumatic rotary valve for periodic feeding. Crushing knife in the crushing cavity is provided with a single axis and multi blade, so that the material subjected to shear and collision in the high-speed rotation of the grinding knife on the role and then crushed. Ascreen mesh with a plurality of apertures is aranged inside the crushing cavity, which can achieve the precision of 0-200. The link below will crush the goods transit bin can be transported to the next station to implement continuous process.
CFJ Hammer Mill
| Technical Data | CFJ-6 | CFJ-12 | CFJ-15 |
| Output（kg/h） | 200～300(80mesh) | 400～800(80mesh) | 600～1000(80mesh) |
| Sieve Mesh | 20-200mesh…(as required) | ||
| Motor Power | 4 | 5.5 | 7.5 |
| Dimension | 700×800×1200 | 800×800×1350 | 900×800×1400 |
| Voltage | 220/380V,50/60Hz | ||
| Temperature of Crushing Chamber | 0-80℃ Adjustable | ||
| Compressed Air | 0.5-0.8Mpa,30L/Min | ||
| Noise | <75dB (under factory test conditions) | ||
| Contact Parts | AISI 316L stainless steel (1.4404) | ||
| Non-Contact Parts | AISI 304 stainless steel (1.4301) | ||
